A Luxury, Not a Necessity

A swimming pool is not a necessity. It is a luxury. Unlike essential services, no one needs to own a swimming pool. It should enrich a lifestyle — not become a recurring source of inconvenience, expense and frustration. For that reason, every swimming pool has certain non-negotiable prerequisites. One of the most important is a properly designed plant room.

If a project cannot accommodate a plant room that allows the pool to be operated, maintained and serviced correctly, our professional recommendation is simple: do not build the pool. A beautifully landscaped garden will almost always provide greater long-term satisfaction than a swimming pool compromised from the day it is conceived.

We recognise that this advice may cost us projects. However, after more than twenty-five years of designing and constructing swimming pools, we have learned that the long-term interests of the client should always take precedence over securing another contract.

Why It Becomes an Afterthought

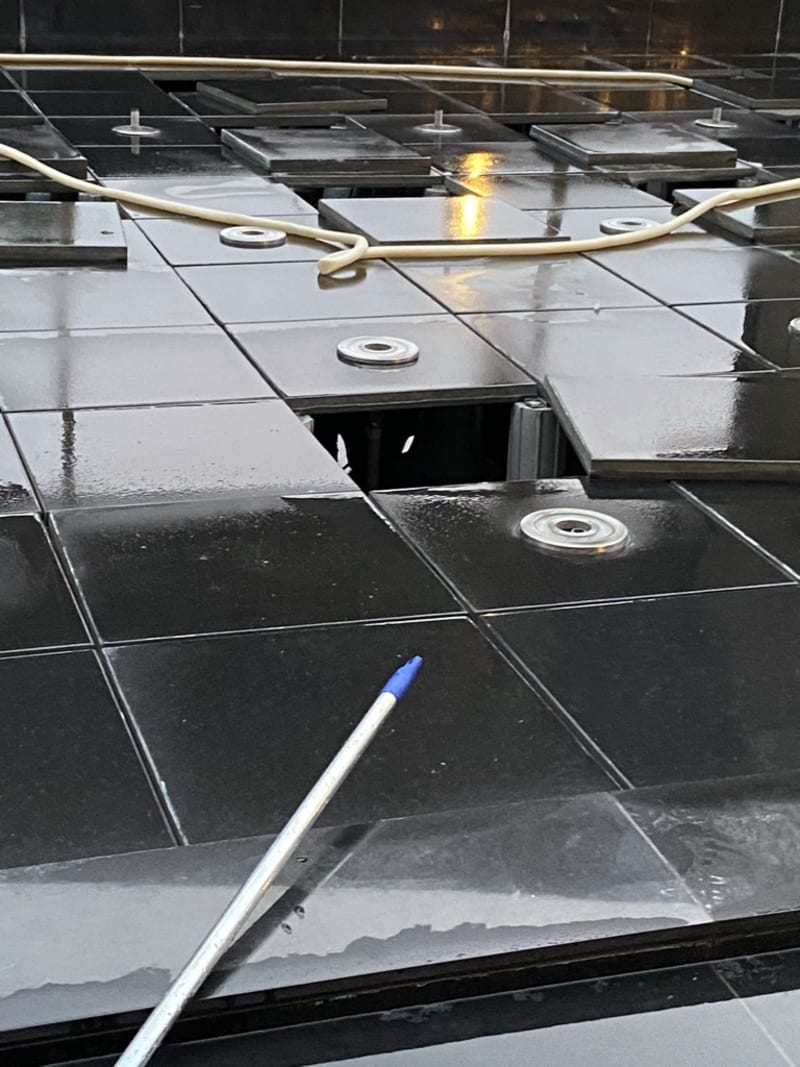

The swimming pool is the part everyone sees. The plant room is the part that makes everything work. Water circulation, filtration, water clarity, chemical dosing, heating, water features, jacuzzi operation, hydrotherapy, UV and ozone treatment, automation and electrical controls all originate here. A beautifully finished pool can only perform as well as the plant room hidden behind it.

The Vicious Cycle

Unlike many building services, pool equipment requires regular human intervention — backwashing filters, cleaning strainers, operating valves, testing water chemistry, refilling dosing systems, and servicing pumps, heaters and automation. When the plant room is difficult to enter, poorly ventilated and uncomfortable to work in, this routine maintenance naturally begins to get postponed.

What an Ideal Plant Room Provides

A plant room should never be designed only around the equipment. It should also be designed around the people responsible for operating and maintaining it. As a general engineering guideline, a plant room should provide at least 40% more usable space than the installed equipment itself requires — not wasted space, but maintenance space: room to remove a pump without dismantling adjacent equipment, and room for future upgrades without rebuilding the plant room itself.

Chlorine Gas Is Not a Substitute for Good Engineering

One of the most concerning practices in compromised pool installations is the use of chlorine gas to compensate for inadequate filtration or a poorly designed plant room. A properly engineered swimming pool should achieve the required water quality through correctly designed hydraulics, adequate filtration capacity, efficient circulation and an appropriate chemical dosing system. Chlorine gas should never become the solution simply because the filtration plant has been undersized or the plant room has been compromised.

Neither dosing chlorine gas manually from cylinders brought onto the pool deck, nor storing those cylinders inside a poorly ventilated below-ground plant room, represents good engineering practice. A pool deck is occupied by barefoot bathers, children and maintenance personnel — it should never become a location where hazardous chemical cylinders are handled as part of routine operation. The risk is compounded below ground: chlorine gas is significantly heavier than air, and in the event of a leak it settles at the lowest level of the room, creating an extremely hazardous atmosphere for anyone entering the space.

Where chlorine gas is legitimately used, it should only form part of a purpose-designed chlorination system incorporating a dedicated chlorination room, automatic gas dosing equipment, gas leak detection, mechanical ventilation, emergency shut-off systems, restricted access, trained operating personnel and clearly defined emergency procedures. Such installations are specialised engineering systems and are rarely justified for residential swimming pools.

In our experience, the appearance of chlorine gas on a pool project is often an indication of a deeper engineering problem — typically inadequate hydraulics, undersized filtration, or insufficient plant room space — rather than a genuine chemistry requirement. Good engineering eliminates the cause. It should never rely on increasingly aggressive methods simply to overcome a compromised design. Gas chlorine is one of the standards we refuse — see Safety First →

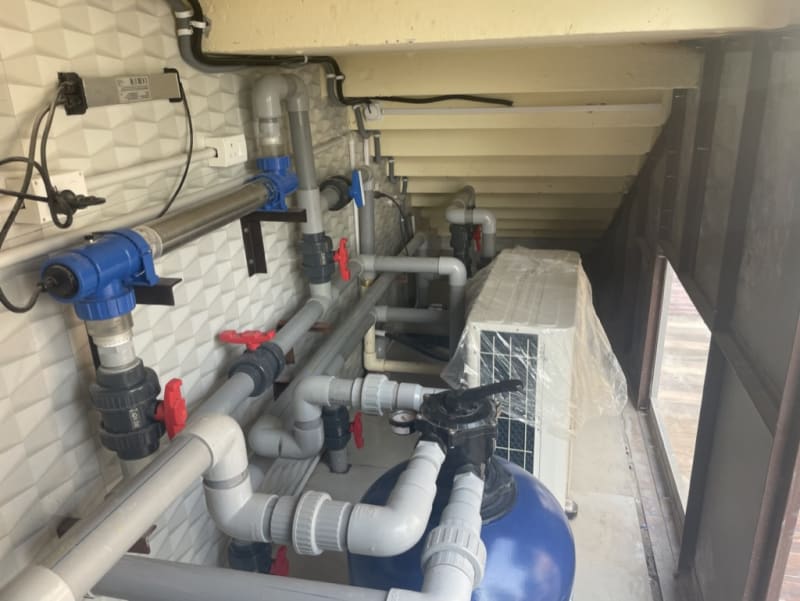

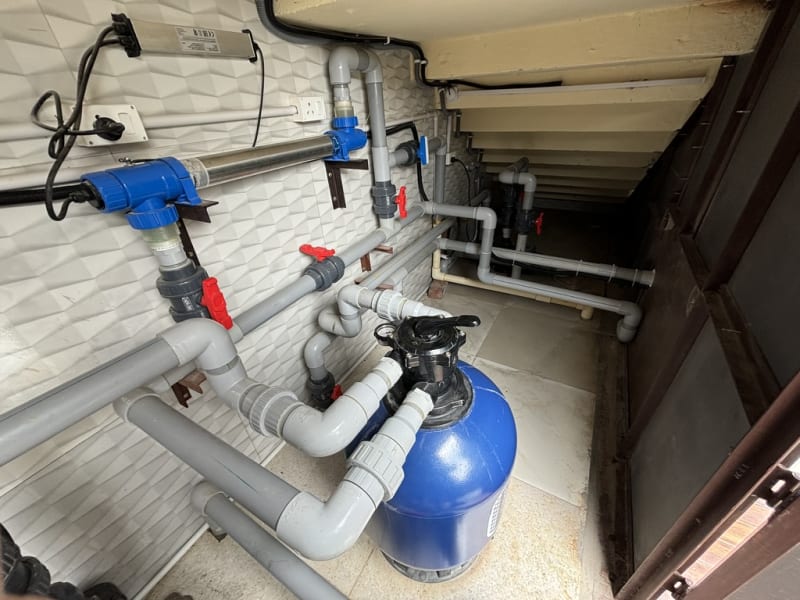

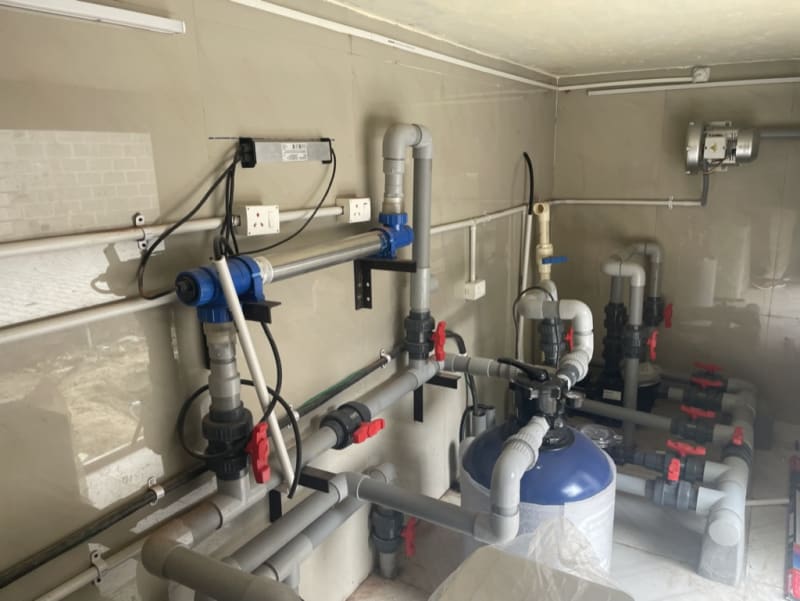

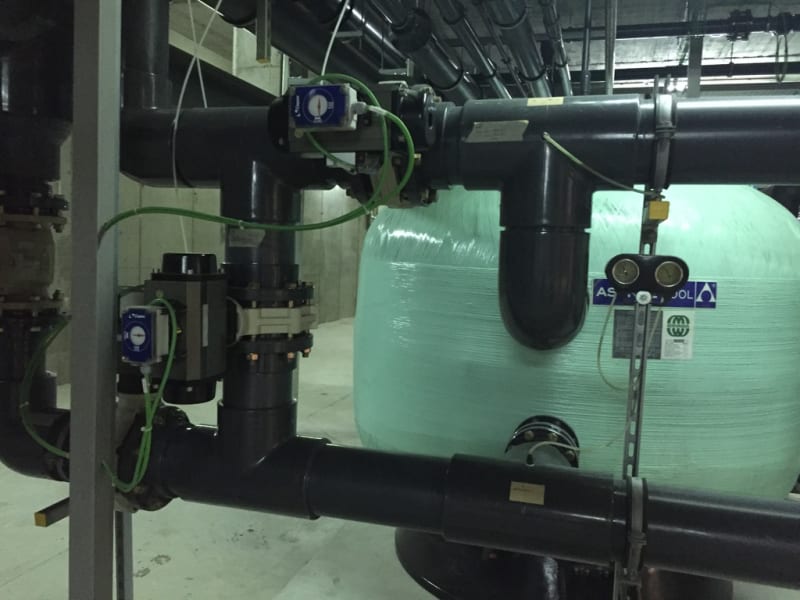

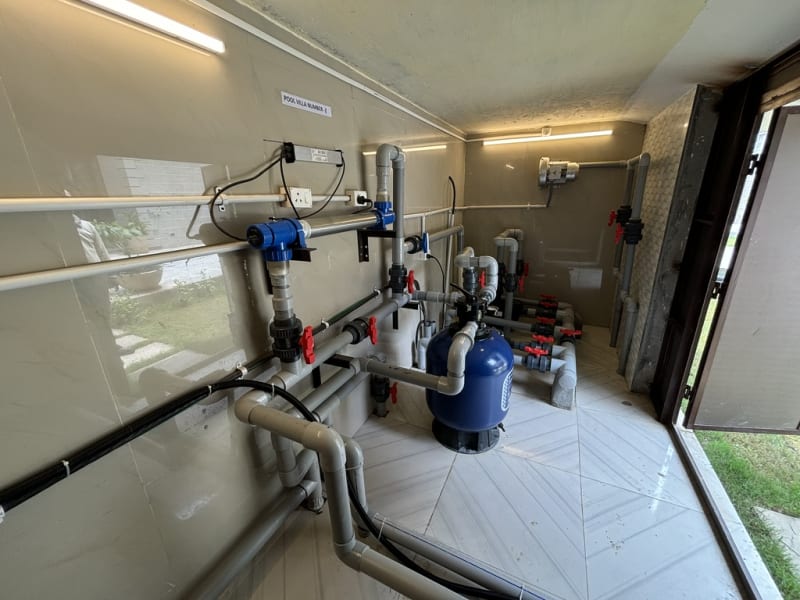

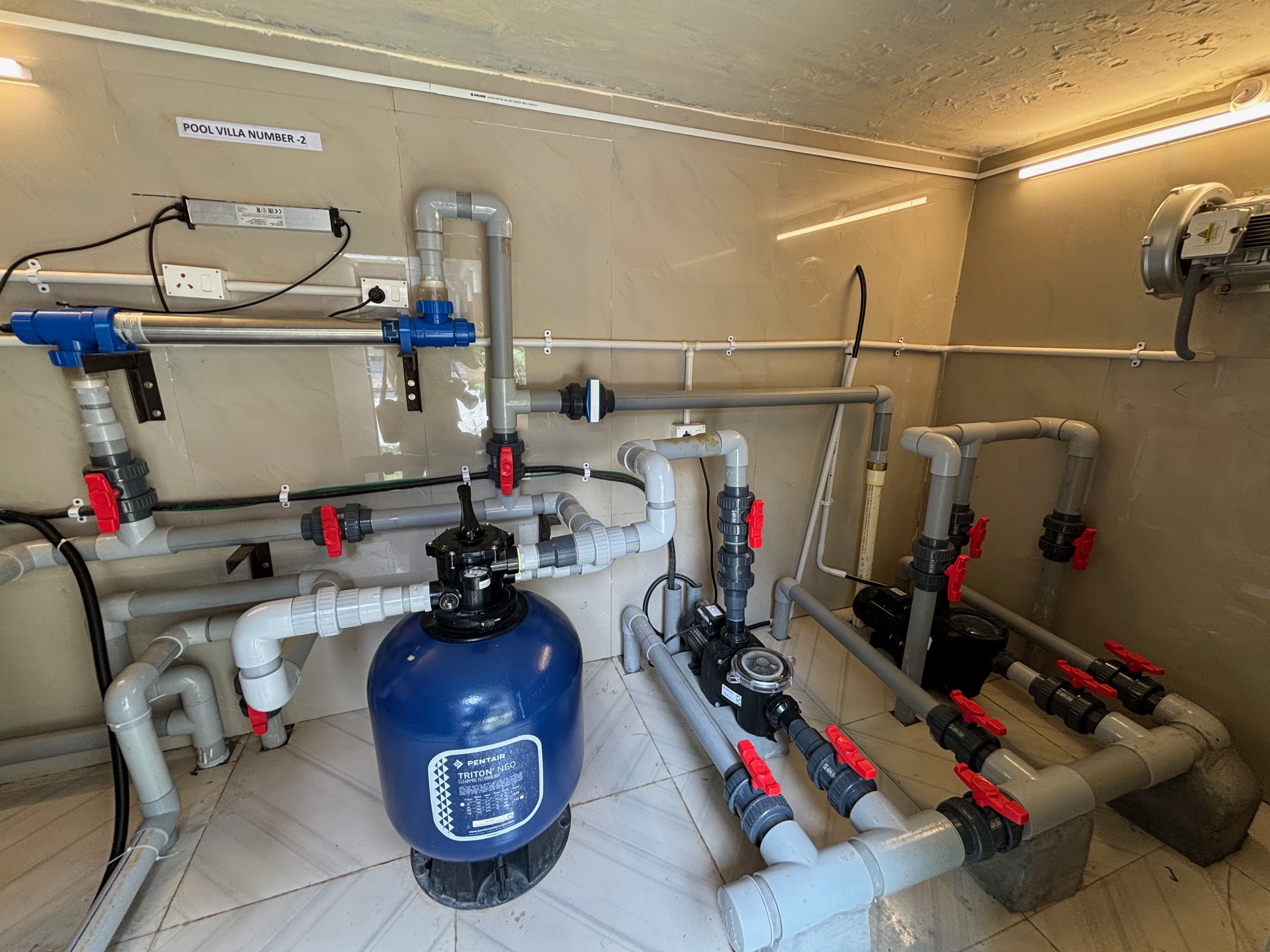

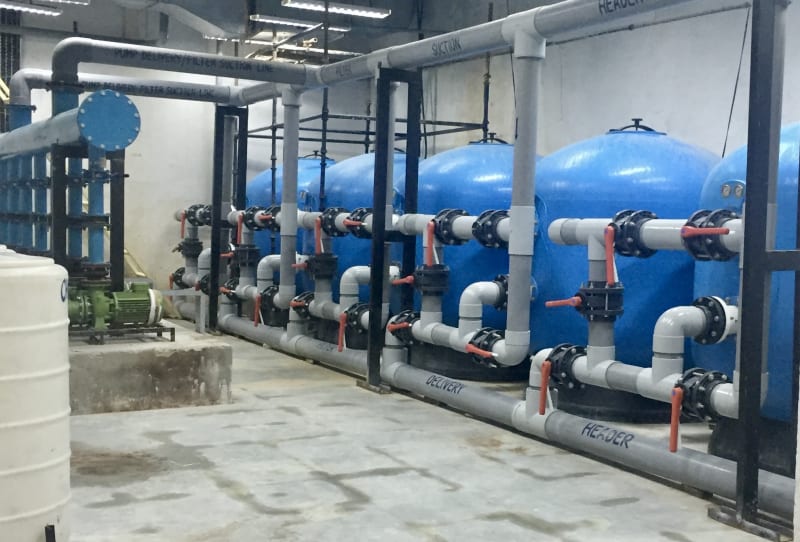

Plant Rooms, Built to a Standard

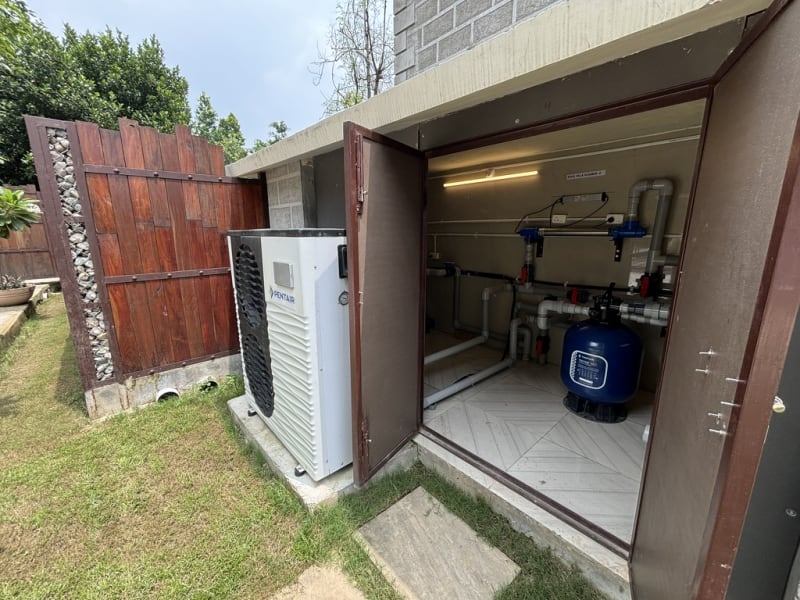

Every plant room we build — regardless of scale or budget — follows the same disciplines: labelled lines, accessible isolation valves, and clearances that make servicing simple for decades, not just for the handover inspection.

What Goes Wrong, and Why

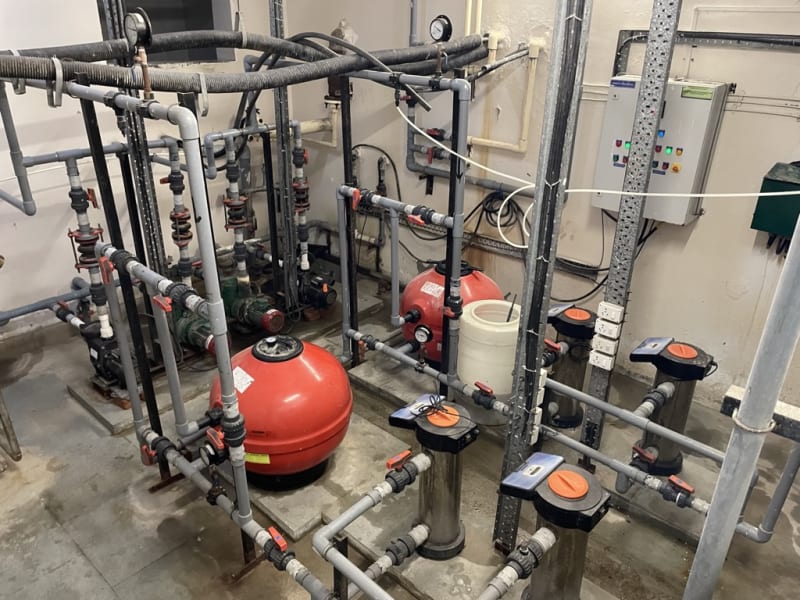

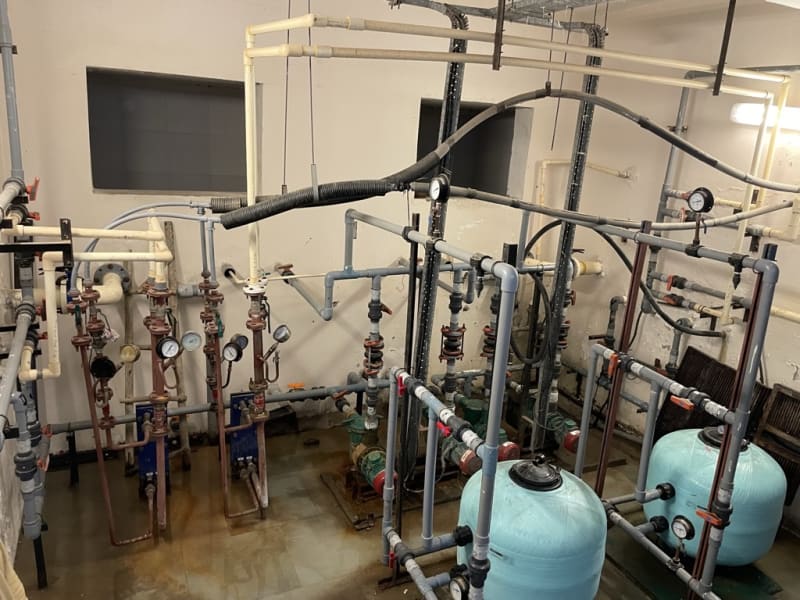

The Cause — Plant Room

Undersized pipe run

Poor valve access

The irony of pool hydraulics is that the system is only as good as its weakest link. Once the pipe selection is incorrect, even adding additional filtration to compensate doesn't help — it only makes the system look messier, without solving the underlying problem.

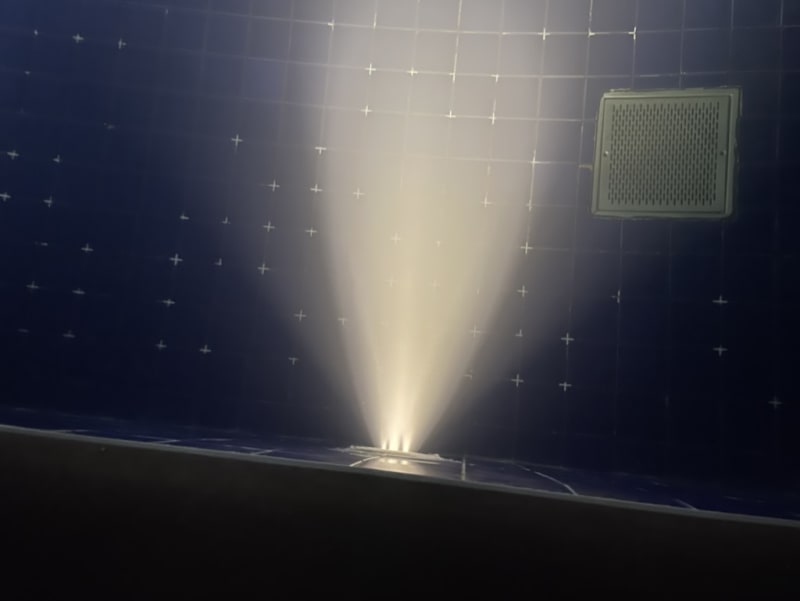

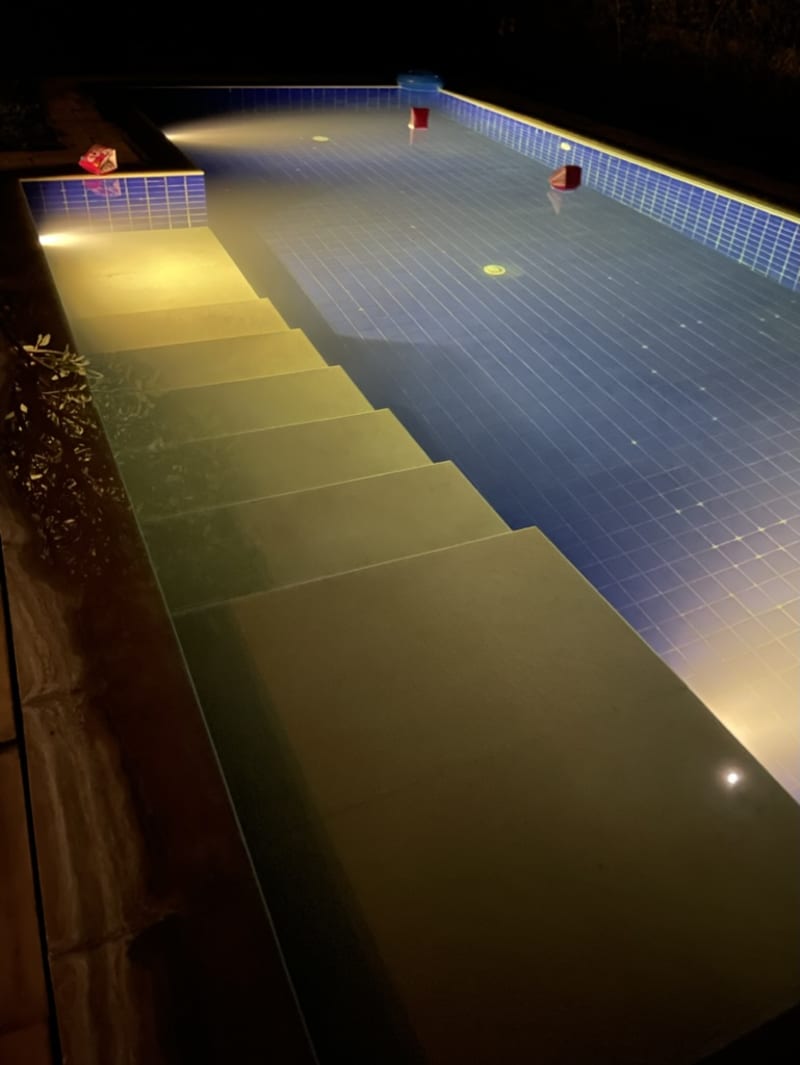

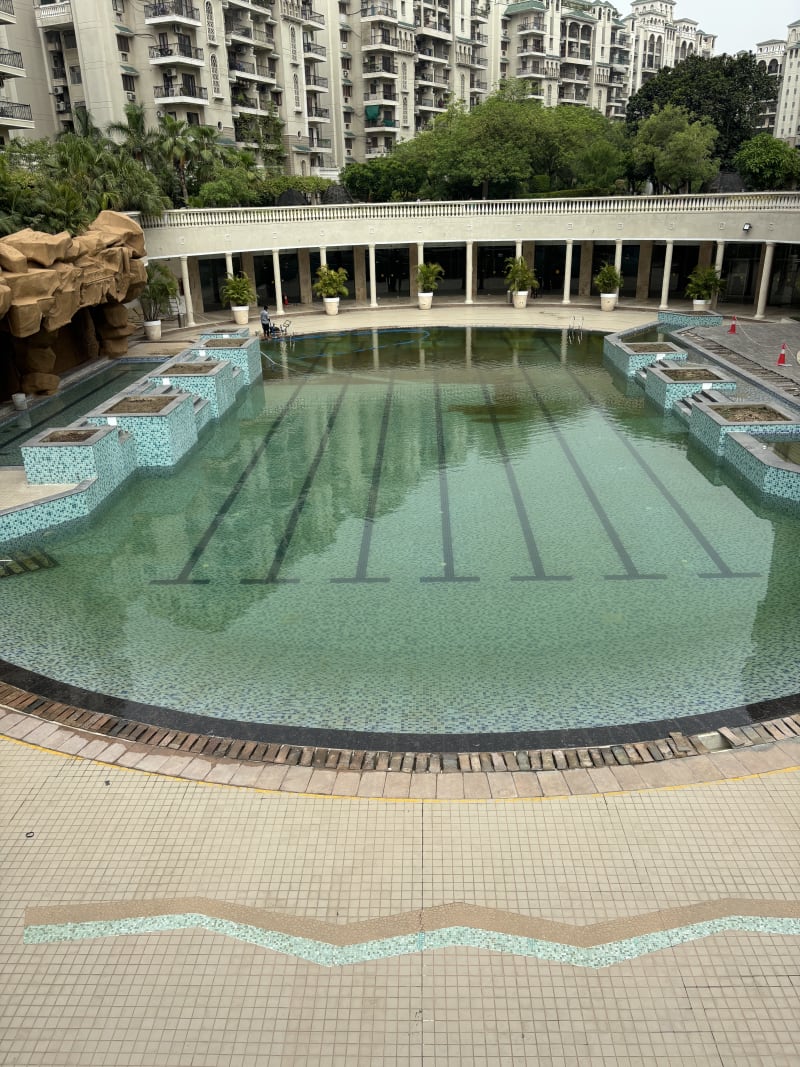

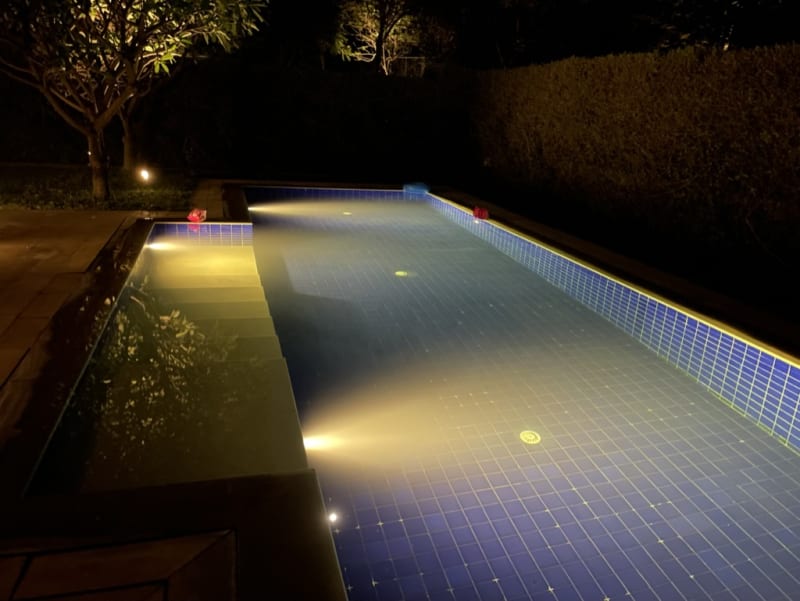

The Effect — Water Quality

Visible particulate

High flow velocity

Clarity >50 microns

Undersized filtration and excessive flow velocity prevent particulate from being captured — the dust and debris visible in light beams here are the direct result of the plant room above. This is the same system; the failure in one becomes visible in the other.

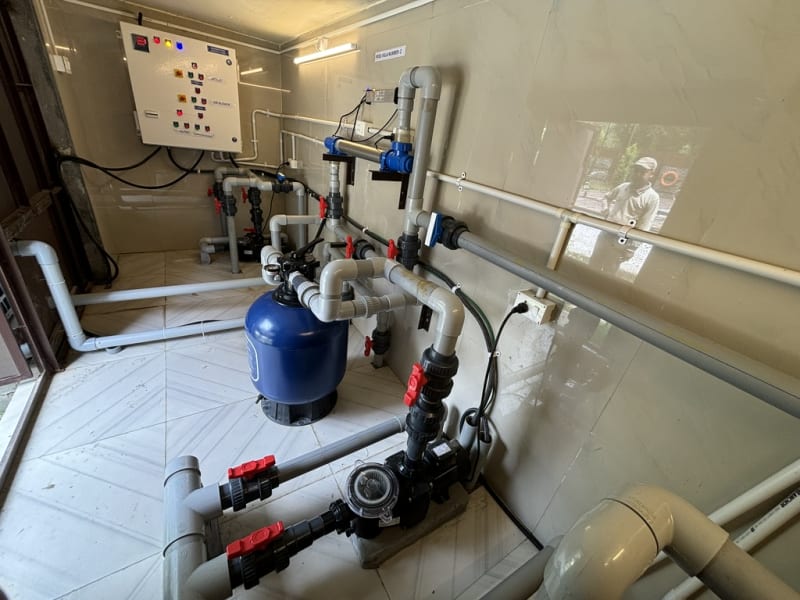

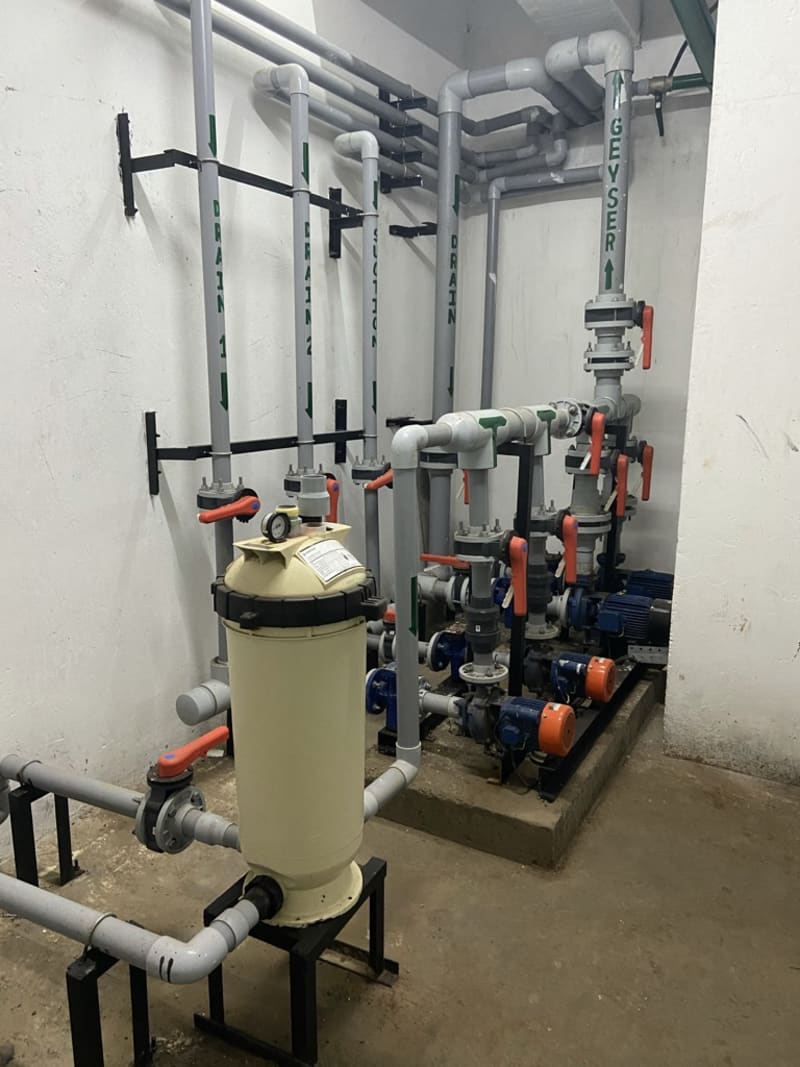

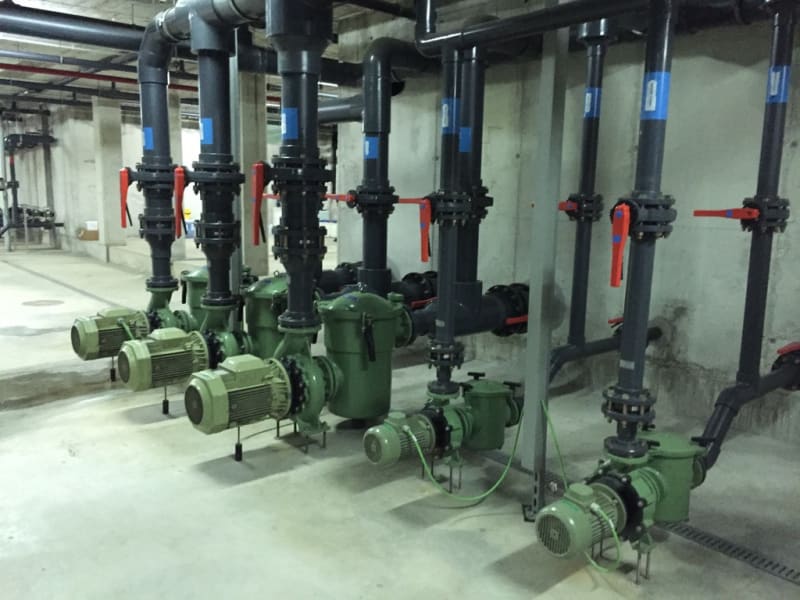

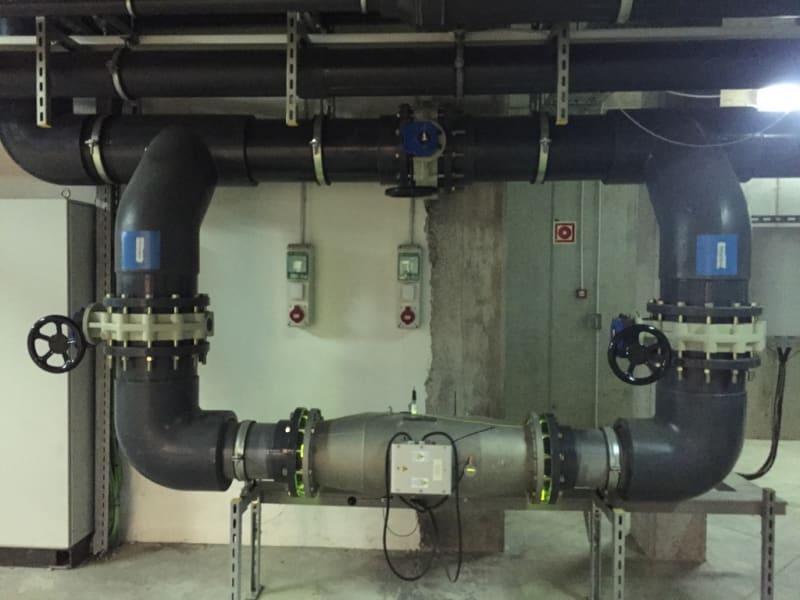

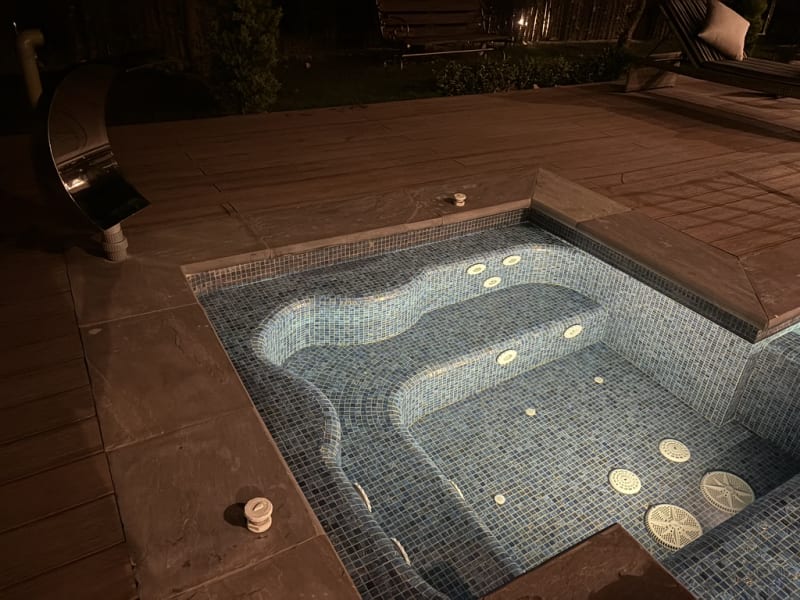

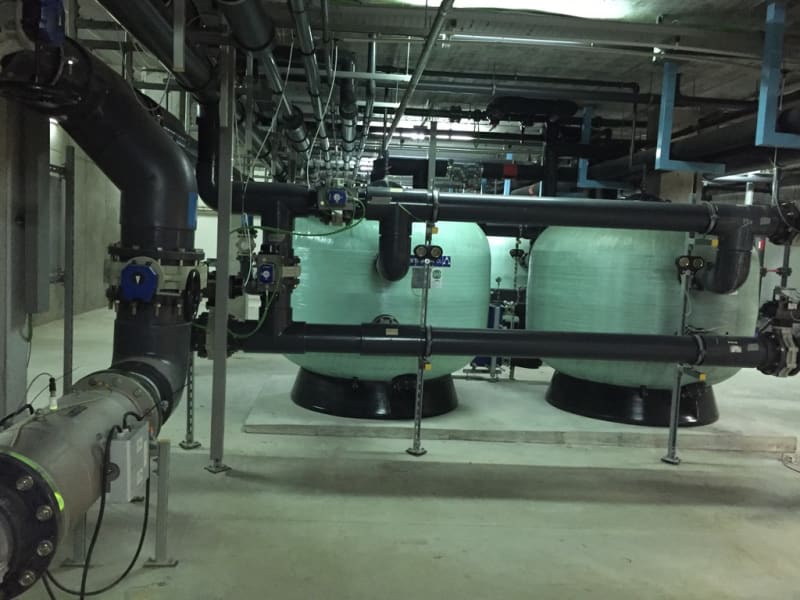

How It's Done Right

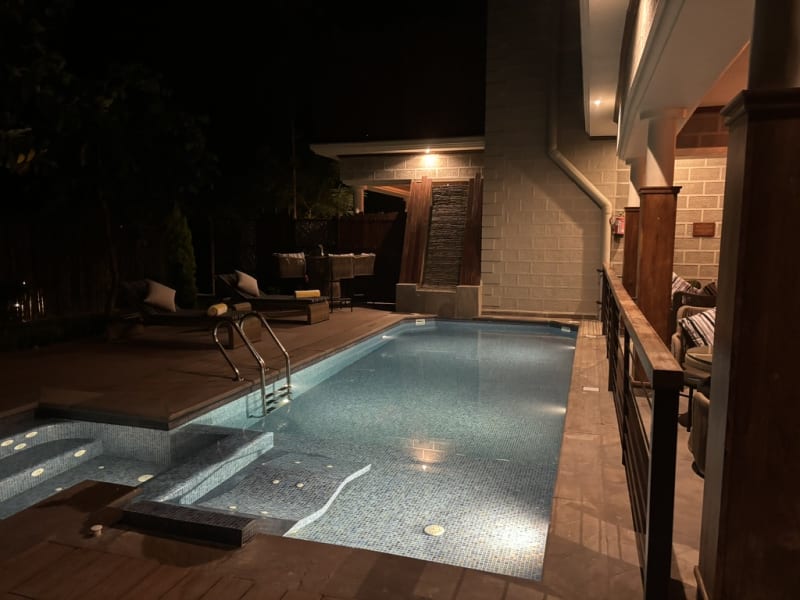

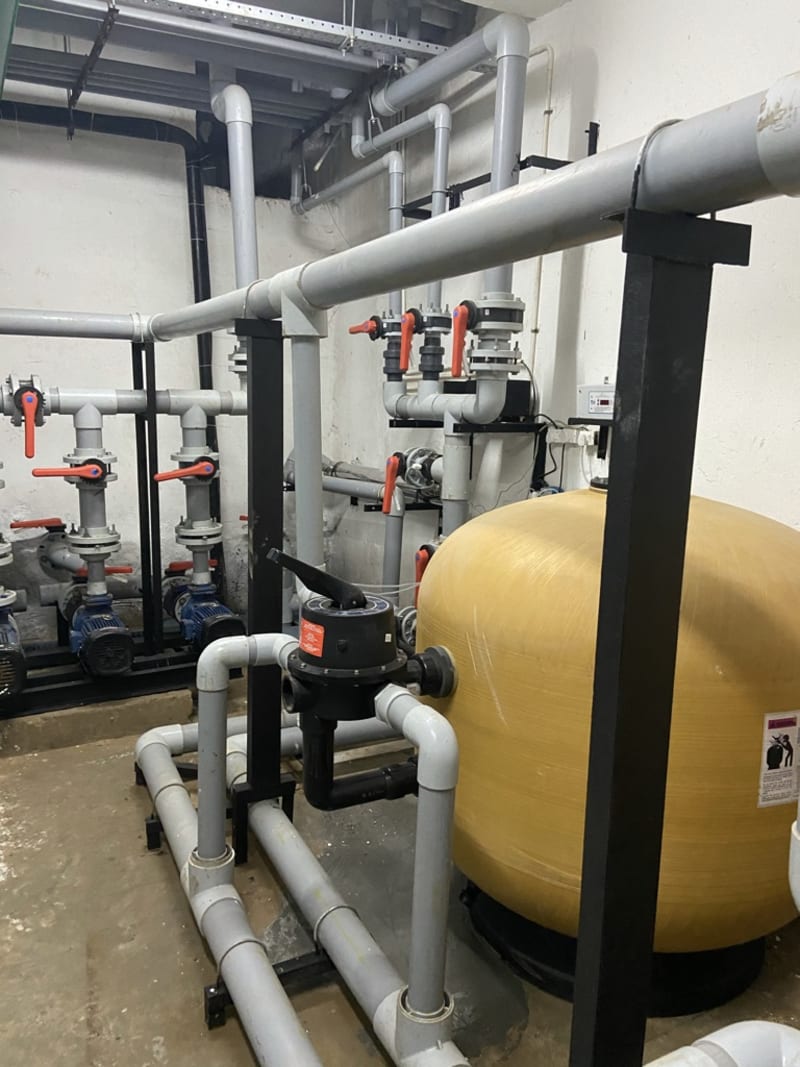

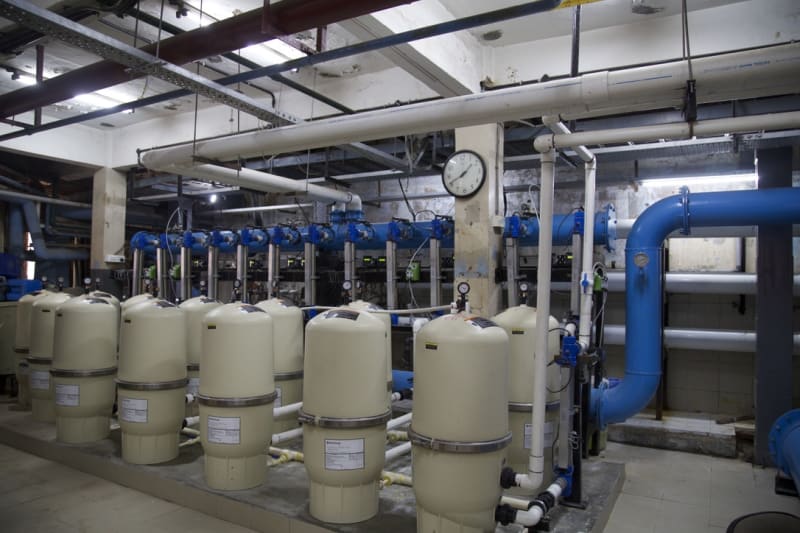

Every plant room we build follows the same principles regardless of scale — accessible isolation valves, labelled lines, and clearances that make servicing simple. 10-micron clarity follows naturally when filtration, flow velocity, and turnover are designed together, not assembled piecemeal. Read the full plant room philosophy →

Water Chemistry Begins with Water Physics

Most discussions of swimming pool water quality revolve around chemistry. Pool operators routinely measure pH, residual chlorine, total alkalinity, calcium hardness and cyanuric acid, then decide what chemicals need to be added. That information is freely available in books and across the internet.

Our objective is different. Rather than explaining how to correct water chemistry, we explain the engineering prerequisites required to make water chemistry work at all.

In our experience, recurring water quality problems are rarely caused by poor chemistry. They are caused by poor hydraulics, inadequate filtration and compromised circulation. Until these are corrected, chemical treatment addresses the symptom while the root cause remains untouched.

The Sequence Every Operator Knows

A heavy shower passes. The water turns green. The water is tested — high pH, low residual chlorine, poor oxidation. Acid is dosed. Chlorine is added. In severe cases, the pool is superchlorinated or gassed.

External Contamination

The most common site error is deck drainage sloped toward the pool. During rainfall, mud, dust, leaves and organic matter wash directly into the overflow channel and enter the circulation system.

The filtration plant is then expected to remove contamination that should never have entered the pool in the first place. The same deck channel, badly built, is also the fourth point of origin in leak diagnosis →

No dosing regime can compensate for a deck that drains into the pool.

Hydraulic Circulation

Chemistry works only if chemicals reach every litre of water. Common causes of broken distribution:

• ✕Undersized circulation pipework.
• ✕Skimmer pools used where overflow systems are more appropriate.
• ✕Poorly levelled overflow channels resulting in uneven overflow.
• ✕Dead zones with little or no water movement.
• ✕Main drains incorrectly used as primary circulation points.

Field Note

We have inspected institutional pools where the main drain became the de facto circulation point — because operating the overflow system would have pushed the pool past its permissible operating level. The plant kept running. The distribution collapsed. Some areas of the pool received fresh, disinfected water; others received almost none.

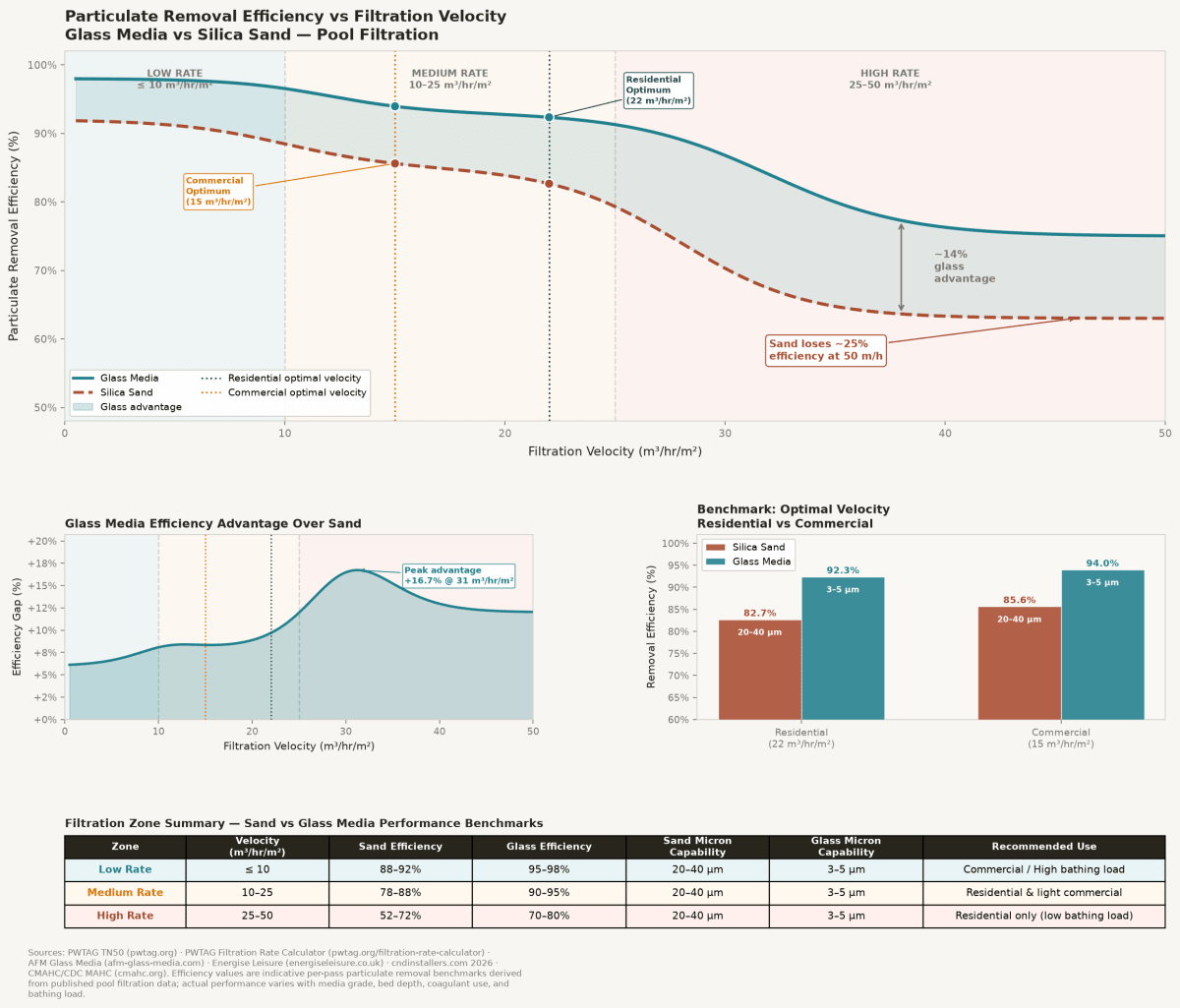

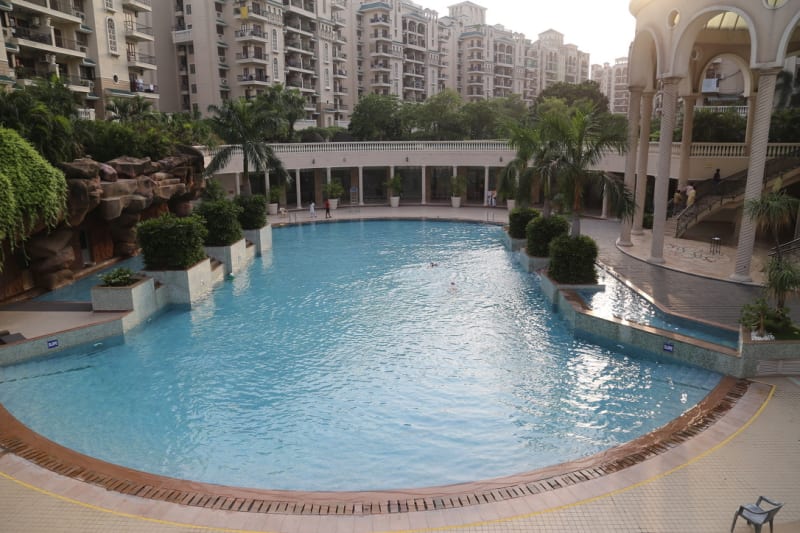

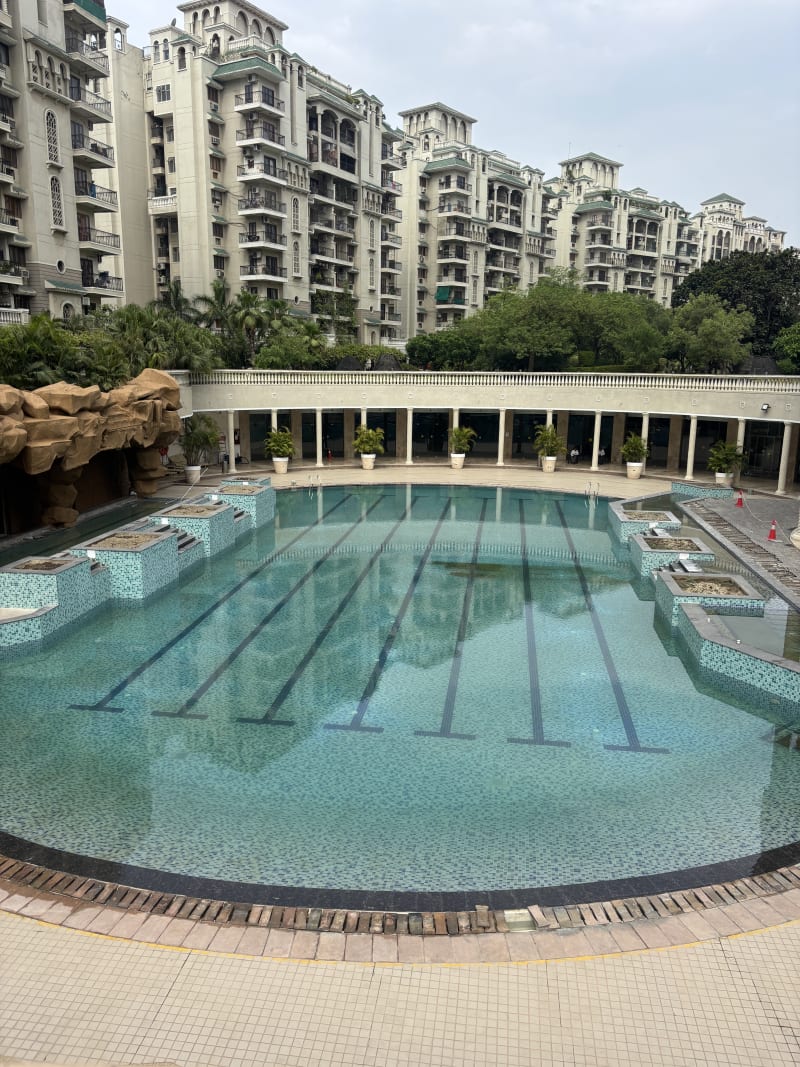

Turnover Time Is Not Filtration Quality

The most persistent confusion in pool engineering. A faster turnover does not produce clearer water. Effective filtration depends on adequate filter surface area, correct filtration velocity, sufficient media depth, and proper hydraulic balancing.

Larger filters require larger plant rooms. Where plant room space is compromised →, filters are reduced in size while larger pumps are installed to hold the turnover figure. The turnover time appears satisfactory. The filtration quality does not. The result is poorer particulate removal, greater chemical consumption and declining water clarity.

The full argument, with filtration velocity calculations and why Indian norms fail, is on the Water Clarity page →

What You See Is Never the Root Cause

Once these engineering deficiencies exist, the symptoms begin to appear. They are not the root causes. They are merely the consequences.

When the Engineering Is Right, the Chemistry Follows

A Properly Engineered Pool Provides

• ✓Effective, uniform circulation to every part of the pool
• ✓Level, evenly loaded overflow channels
• ✓Correct filtration velocity and adequate filter surface area
• ✓Proper hydraulic balancing across all circuits
• ✓Deck drainage directed away from the water

Why It Goes Undetected

A swimming pool leak is one of the most misunderstood problems in the industry. Contrary to popular belief, most leaks are not difficult to repair — they are difficult to identify correctly. In many cases, substantial water loss continues for weeks or months simply because the wrong component is being investigated.

Around 60% of pool leaks that show up first in the balancing tank are never identified as leaks at all. The reason is almost embarrassingly simple: water disappearing from the tank is assumed to be evaporation, not loss.

A balancing tank typically holds 5–8% of the pool's total volume. Losing half that tank's water in a day — or emptying it completely every two days — looks insignificant on its own. In reality, it means the pool is losing 2.5–4% of its total water every single day. At that rate, the pool would lose its entire volume in 25–40 days.

Yet because the water level inside the pool itself barely moves, nobody notices. Most operators only get concerned when the tank empties within a single day — by which point the leak has usually become severe. A slower leak, one that takes two or three days to empty the tank, is far more likely to be written off as evaporation, even though the cumulative loss over a month is substantial. The balancing tank can conceal a serious leak long before the pool itself reveals one.

How a Leak Is Actually Found

A pool leak has three possible points of origin — the structure, the plumbing, and the balancing tank — and a fourth that only comes into play once the first three are cleared: the deck overflow channel. Successful leak detection is the process of eliminating each system independently. Testing multiple systems at once almost always produces incorrect conclusions and unnecessary repairs.

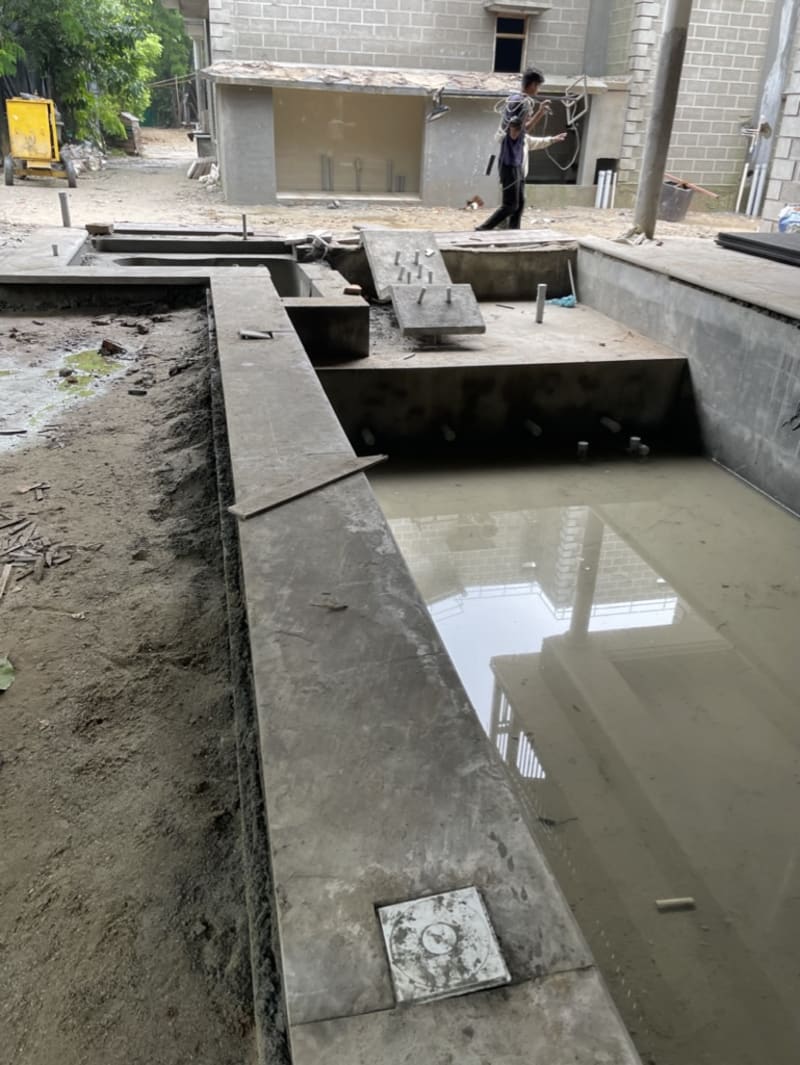

Why Most Builder-Project Pools Leak Within the First Year

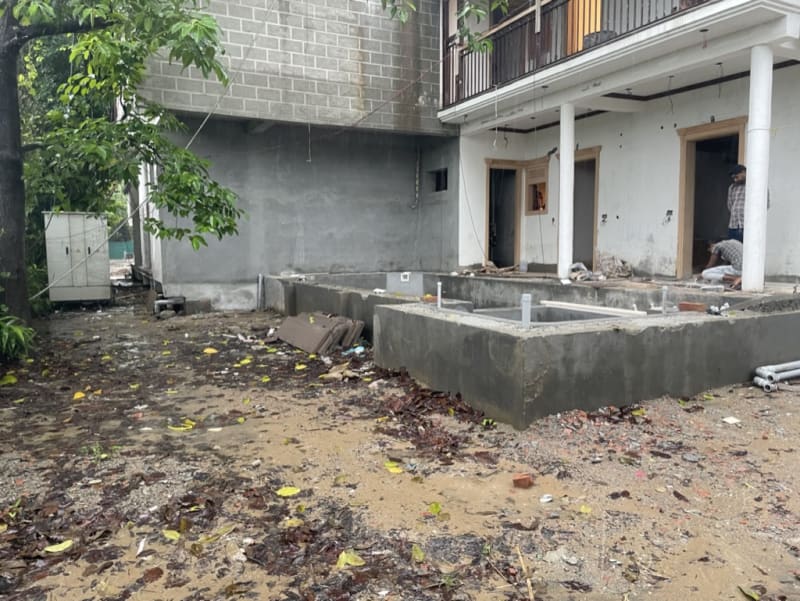

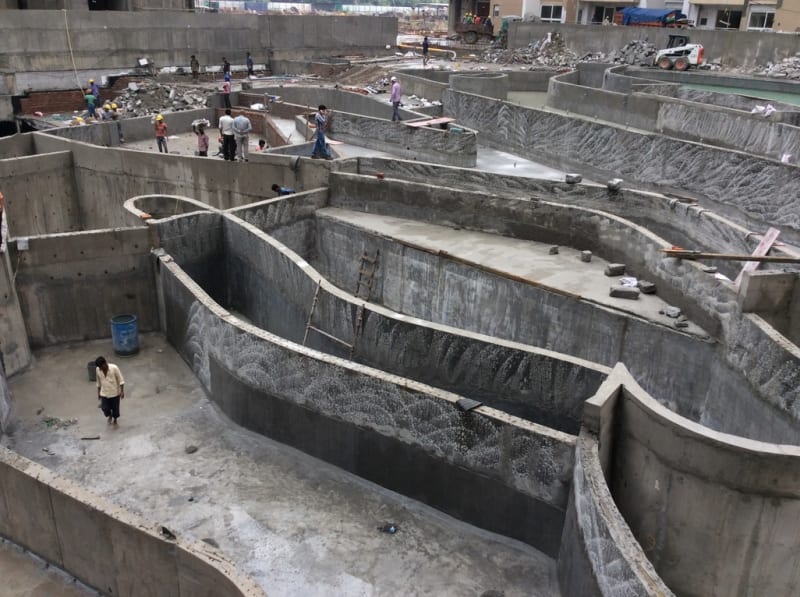

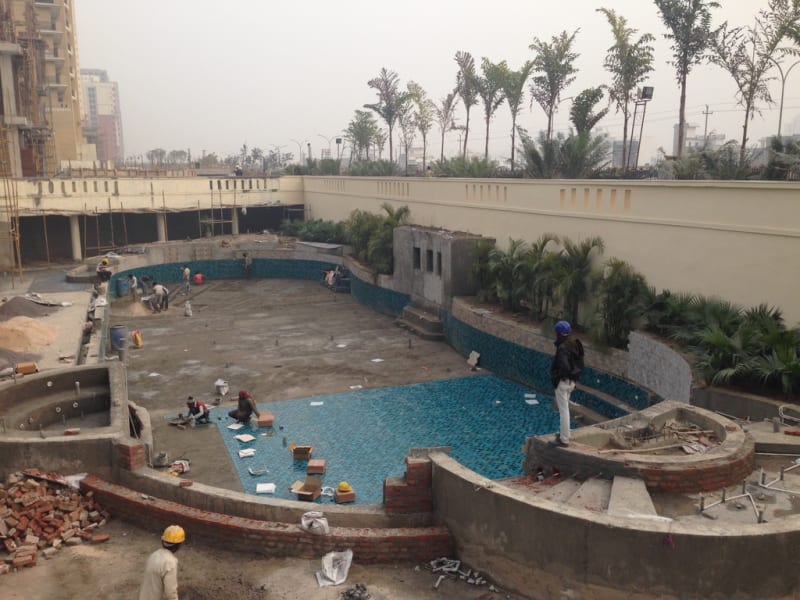

The diagnostic above exists because most pools are never given the chance to pass it. Many leaks do not originate from material failure — they originate from construction sequencing. In large residential developments, hotels, and apartment projects, the pool contractor is frequently appointed only after significant civil construction has already been completed, by which point important engineering decisions have already been made without specialist input.

Real Waterproofing vs. a Cover-Up

One of the most common misconceptions in pool construction is that a waterproofing membrane makes a leaking structure watertight. It does not.

Rarely the Actual Cause

Electrical accidents around swimming pools are uncommon — but when they happen, the underwater light is almost always blamed. The circuit feeding it is the one part of pool electrical work that's correctly built nearly everywhere.

The Hidden Hazard Around the Deck

While attention stays on the underwater light, numerous other circuits run beneath and around the same deck — and unlike the pool light, these generally operate at full 220-volt mains.

How the Accident Actually Happens

A technician replacing a fused underwater light — itself only 12 volts — is standing barefoot on a wet deck. Touching that 12-volt fitting while a damaged or leaking 220-volt circuit nearby has energised the same wet surface, the body completes the path to earth. The incident gets attributed to the light, simply because that's the equipment being serviced. The actual fault is almost always somewhere else.

This isn't theoretical. On projects investigated by Premium Pools, shocks initially blamed on underwater lights were traced back to high-voltage circuits serving landscape features built into the pool surround. The equipment being serviced is not always the equipment at fault.

Multiple Layers of Protection

A safe pool never depends on one safety device. The principle that governs every decision: wherever practical, keep high-voltage services out of any area where people stand barefoot, wet, and in direct contact with water.

Myth vs. Reality

Electrical Safety Design Checklist

• ✓Underwater lighting operating at 12 volts
• ✓Isolation transformers installed outside the immediate pool zone
• ✓High-voltage services minimised within the barefoot deck area
• ✓Low-voltage landscape lighting wherever practical
• ✓Equipotential bonding connecting every exposed conductive component
• ✓Proper earthing on every electrical installation
• ✓RCD/ELCB protection on every pool electrical circuit
• ✓Correct electrical zoning around the entire pool
• ✓Pneumatic or remote switching wherever bathers operate equipment directly
• ✓Underground electrical routing documented before construction begins

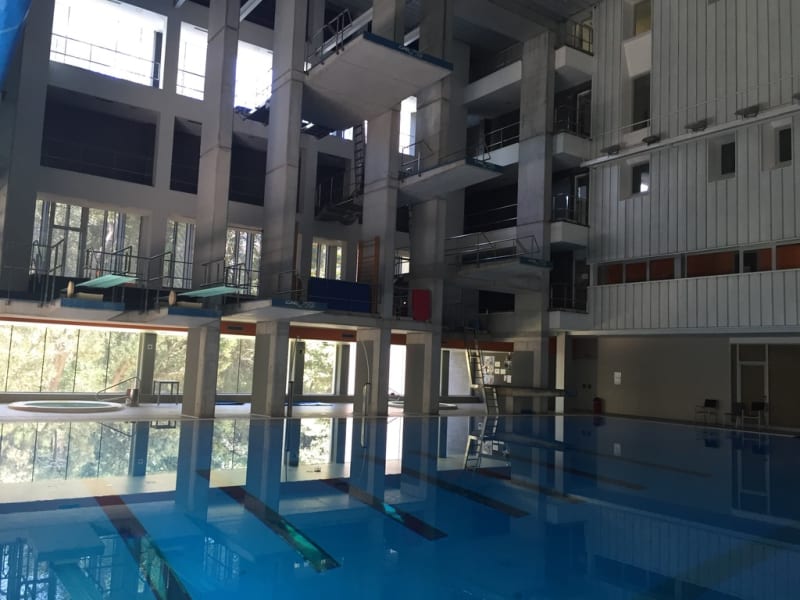

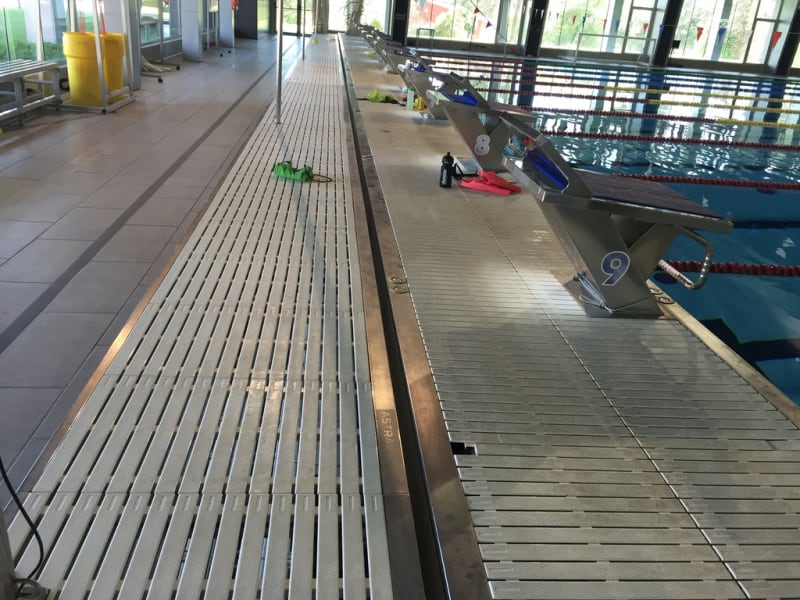

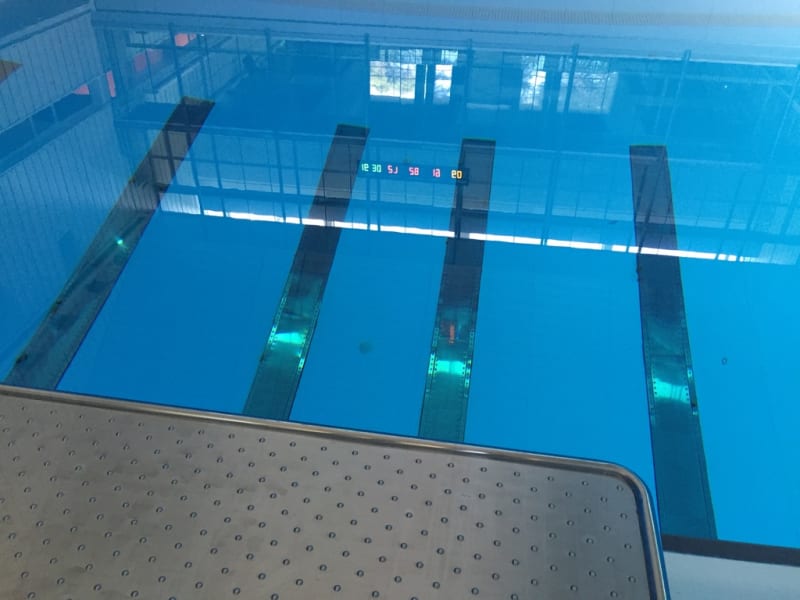

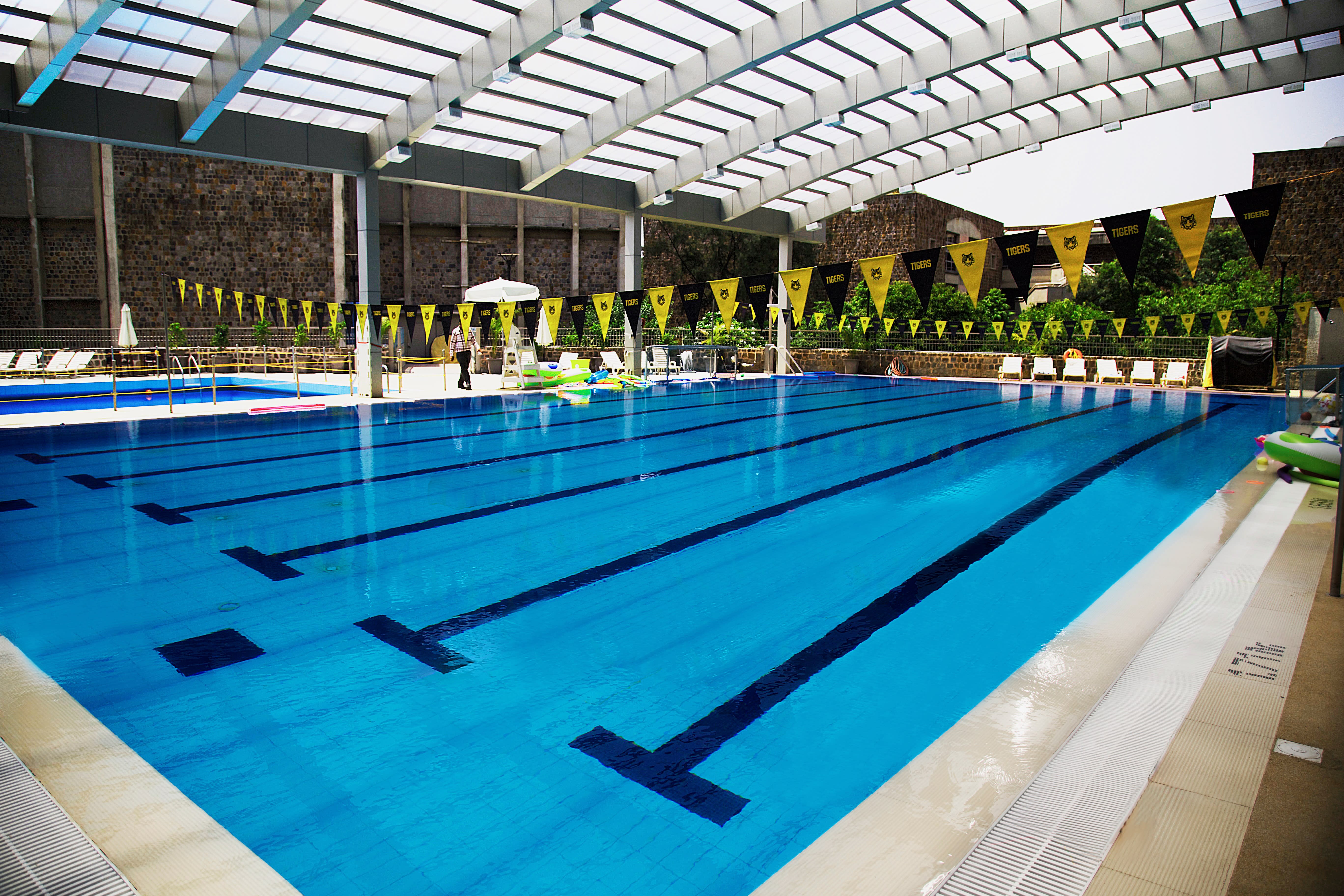

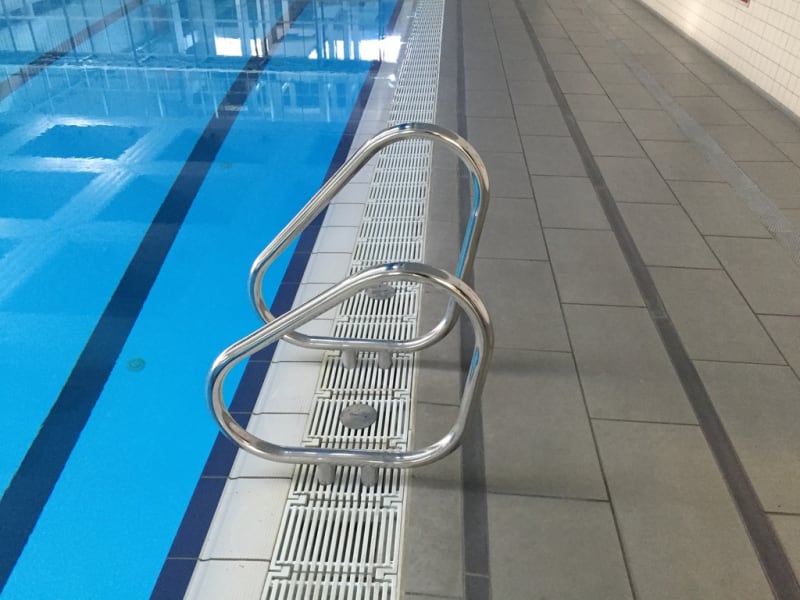

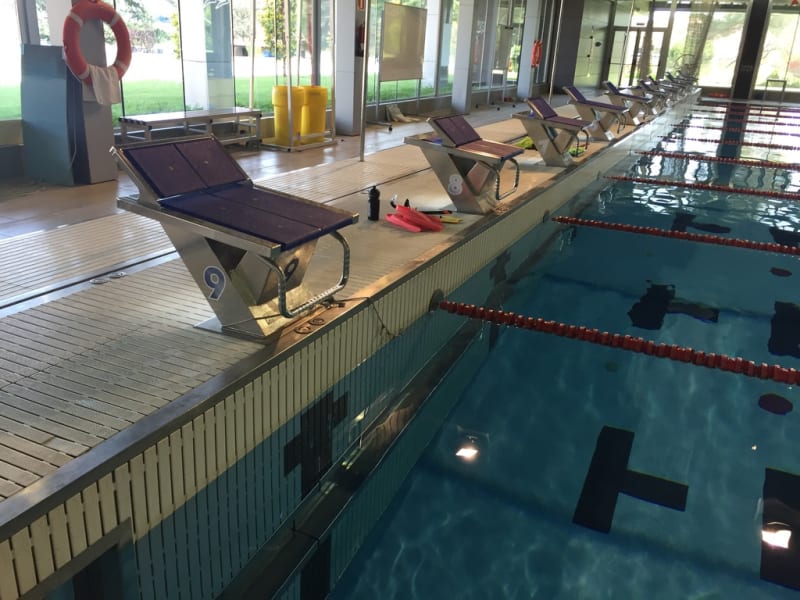

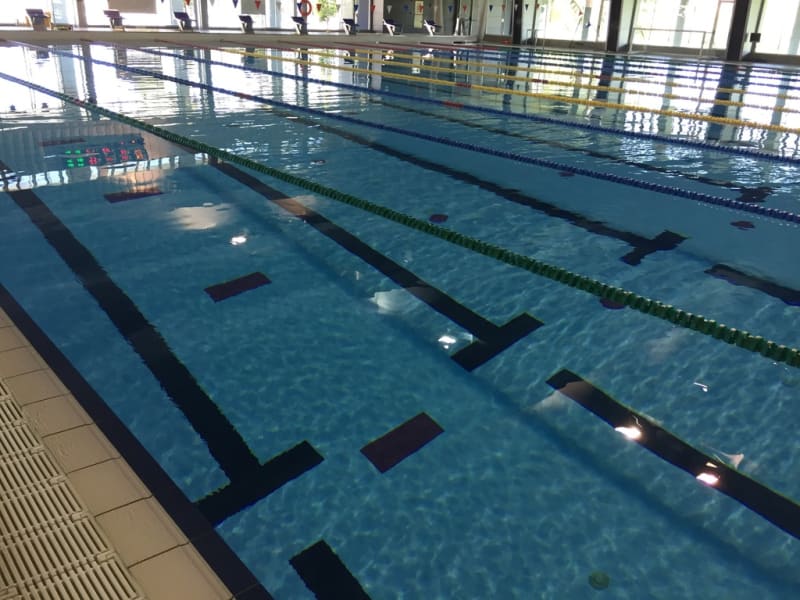

Competition Pool Detail

Lane discipline, touchpad placement, bulkhead tolerances, and deck clearances at competition standard — shown here for architects and consultants studying the specification, not as a record of our own projects.

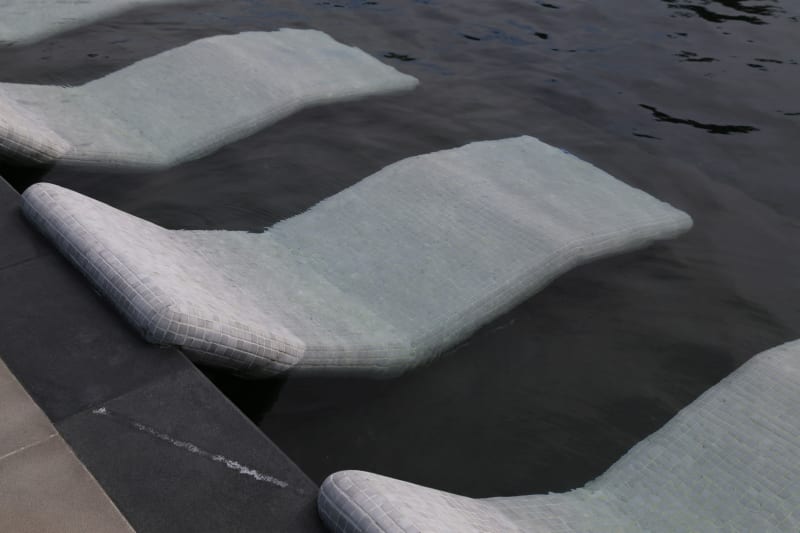

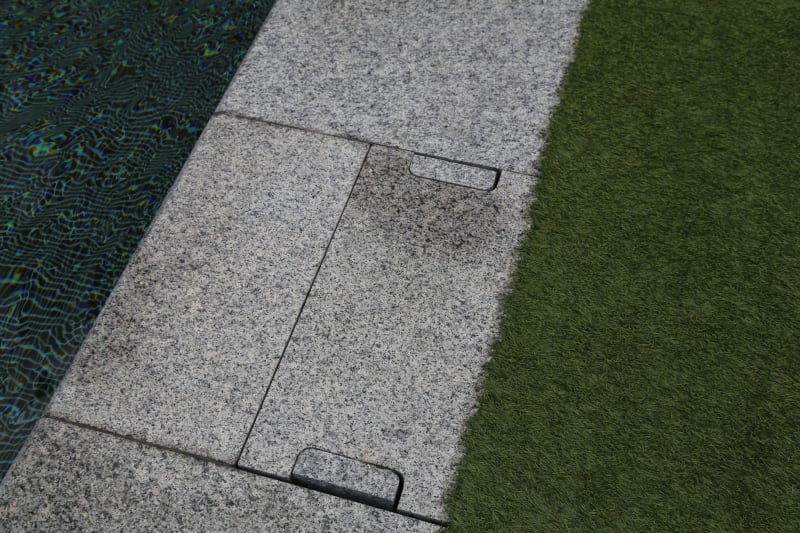

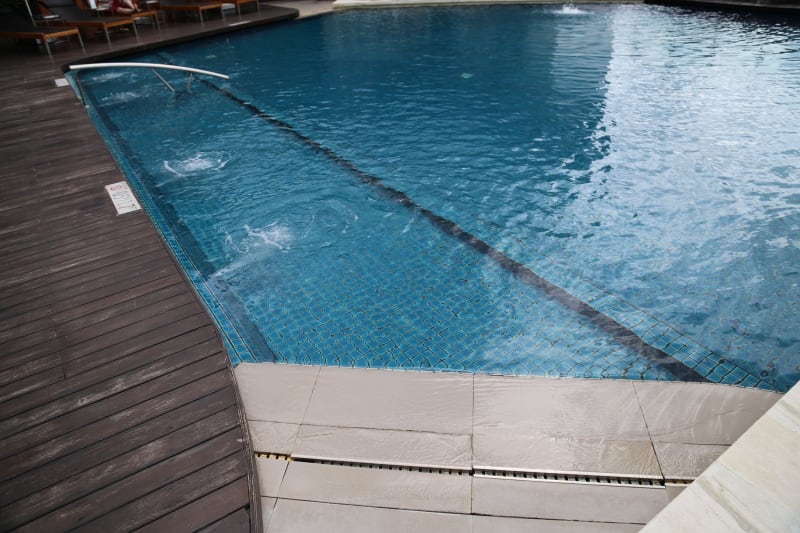

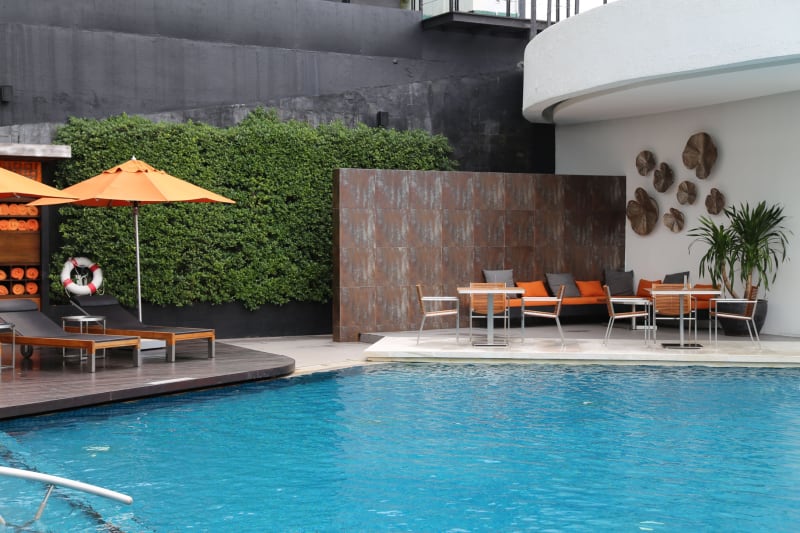

Pool Surround Details

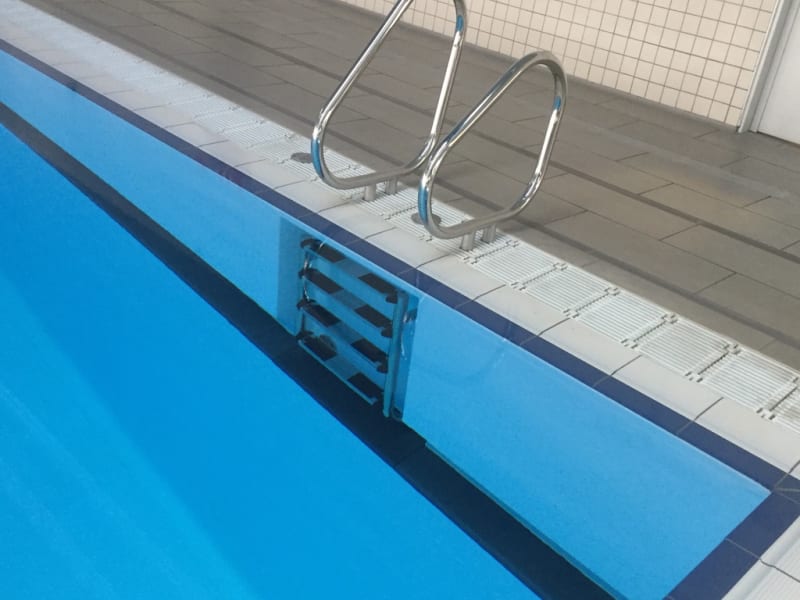

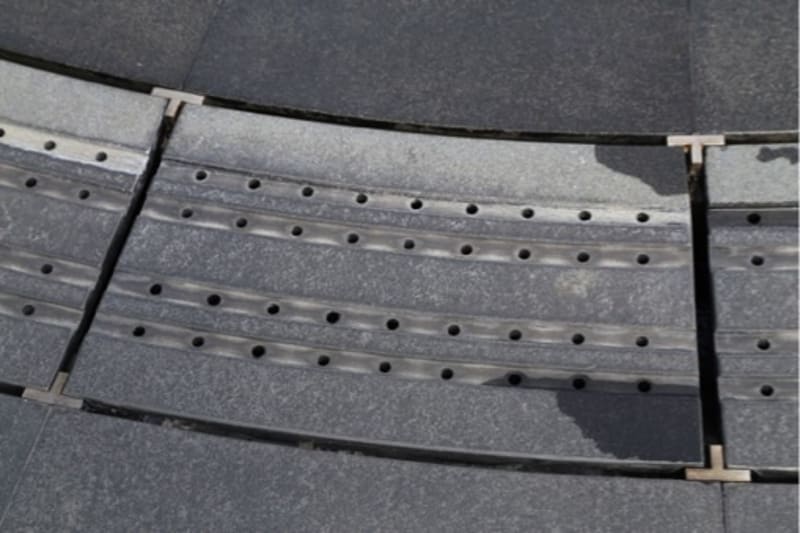

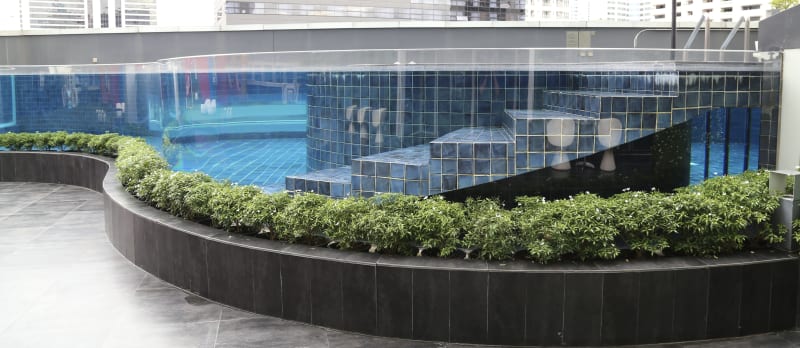

Coping, decking, drainage, and the landscaping choices that finish a pool's edge — shown here for reference and learning, not as a record of our own projects.
